Complete Solution for Vacuum Salt Production Line

Our vacuum salt production line provides a state-of-the-art solution for efficiently producing high-purity salt. Featuring advanced technology, optimal heat utilization, and customizable options, it guarantees superior performance and exceptional quality in salt manufacturing.

Technical Specifications

Production Capacity: Customizable from 1 to 30 tons per hour.

Explore Our Process!

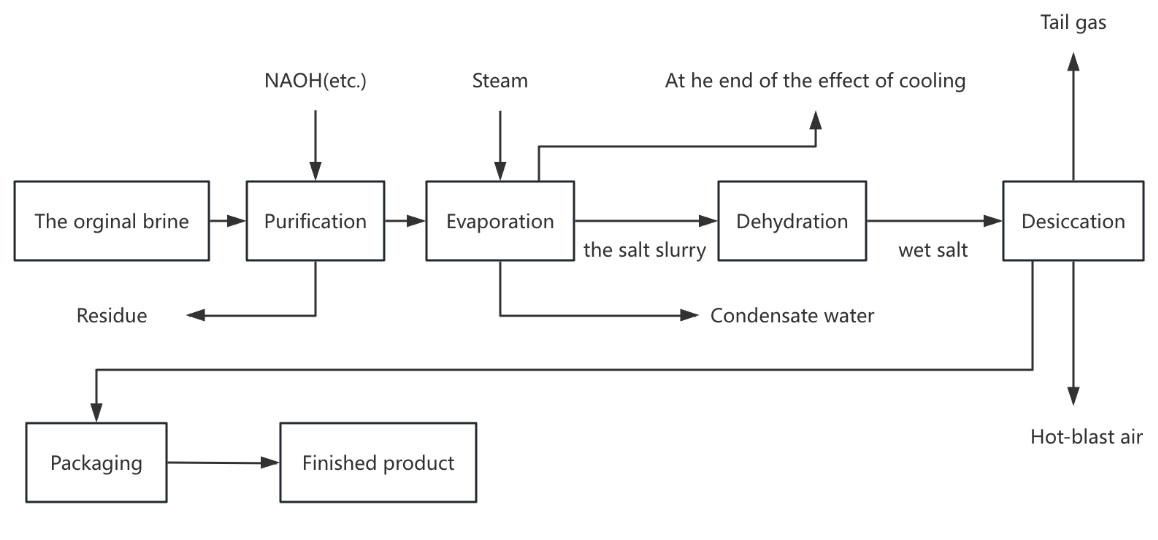

Salt Production Process

setp1

setp2

setp3

setp4

Brine Preparation andTreatment

Purpose: Prepare and purifybrine to ensure it's suitablefor salt production.Components: Includes theatmospheric condenser, pre-heater and filter.
Process: Atmospheric Condenser:Condenses steam from theevaporation process to recover and reuse heat enhancing energy efficiency.Pre-Heater: Warms the brinebefore it enters the evaporation stage, reducingenergy consumption duringevaporation.
Filter: Removes impuritiesfrom the brine to ensure aclean feedstock forcrystallization.

Evaporation and Crystallization

Purpose: Evaporate water from the brine to form salt crystals.
Components: Utilizes a four-effect evaporation system.
Process: Four-Effect Evaporation System: Operates in multiple stages, using the heat from one stage to assist the next, thereby maximizing energy efficiency. This system evaporates water from the brine, causing salt to crystallize.

Dehydration and Drying

Purpose: Remove residual moisture from the crystallized salt to achieve the desired dryness.
Components: Includes centrifuge and drying machine.
Process: Centrifuge: Separates water from the salt crystals through high-speed spinning, preparing them for the drying stage.
Drying Machine: Uses various drying techniques (e.g., fluidized bed or rotary drum) to achieve a final moisture content of 0.1% to 0.5%.

Packaging and Warehousing

Purpose: Package the finished salt for distribution and storage. Components: Packaging machine and warehousing facilities. Process: Packaging Machine: Automatically fills and seals salt into bags or other containers for shipment.
Warehousing: Stores the packaged salt until it is ready for distribution.

Salt Production Machine

1.Atmospheric Condenser:

Function: Recovers and reuses heat from evaporated steam, improving energy efficiency.
Features: High-performance heat exchange surfaces, durable construction for long-term use.

2.Four-Effect Evaporation System:

Function: Maximizes heat utilization by using the vapor from one effect to heat the next.
Features: High-efficiency evaporators, modular design for scalability.

3.Conveyor:

Function: Transfers materials between various stages of the production line.
Features: Heavy-duty construction, adjustable speed controls.

4.Crusher:

Function: Reduces the size of larger salt crystals to achieve uniform granularity.
Features: Robust design, adjustable crushing settings.

5.Elevator:

Function: Lifts materials to different stages of the production process.
Features: High-capacity design, durable construction.

6.Pre-Heater:

Function: Preheats brine before evaporation to optimize energy use.
Features: Efficient heat transfer, energy-saving design.

7.Filter:

Function: Removes impurities from the brine to ensure high-quality salt production.
Features: High-filtration capacity, easy maintenance.

8.Centrifuge:

Function: Separates moisture from salt crystals.
Features: High-speed operation, effective moisture removal.

9.Drying Machine:

Function: Dries salt crystals to achieve the desired moisture level.
Features: Adjustable drying parameters, energy-efficient operation.

10.Packing Machine:

Function: Fills and seals bags or containers with finished salt.
Features: Automated operation, precise filling controls.

Soap Production Machines

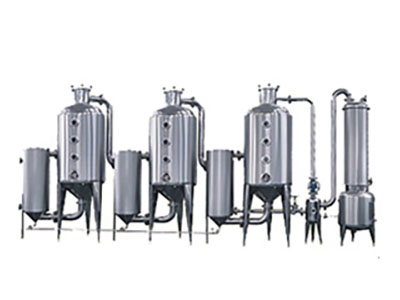

Multifunction Stainless Steel Evaporator

Multifunction Stainless Steel Evaporator is suitable for evaporation of the liquid material and recovery of th…

Efficient Heat Utilization

The system reuses excess heat from the condensation process to enhance evaporation efficiency, reducing overall energy consumption.

Direct Brine Application

The brine is used directly in the production process, minimizing the need for separate crystallization and dissolution stages, which improves overall production efficiency and supports automation.

Improved Production Efficiency

Streamlined processes and advanced equipment contribute to higher production rates and better quality control.

Support for Mechanization

The design supports mechanized operation, making it easier to scale up production and integrate with automated systems.
